SHH Outward Casement Window

   Product Features

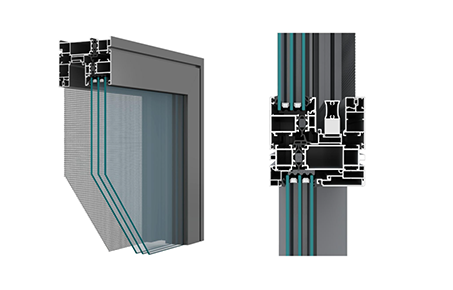

1. Thermal break system

Featuring thermal-break system technology for energy saving, sound insulation, noise reduction, dust and water resistance.

2. Heat proof

Insulation design system and glazings with Low-e glass, meeting different energy rating standards.

3. Sound proof

 Insulation glass system reducing noise from 36db to 43db

4. stable structure

Premium primary aluminum 6063-T5, professional architectural system design, strong and safe structure

5. Aesthetics

Hidden drainage system without external wind caps, delivering a clean exterior look while ensuring vertical drainage that prevents rainwater backflow under high wind conditions.

6. Intelligent

 With smart window control system, intelligentize your home.

    Product Brief

1. Our outward-opening window offers two flexible opening options:

• Casement Mode: Opens outward on side hinges, bringing in maximum fresh air and keeping your interior space uncluttered.

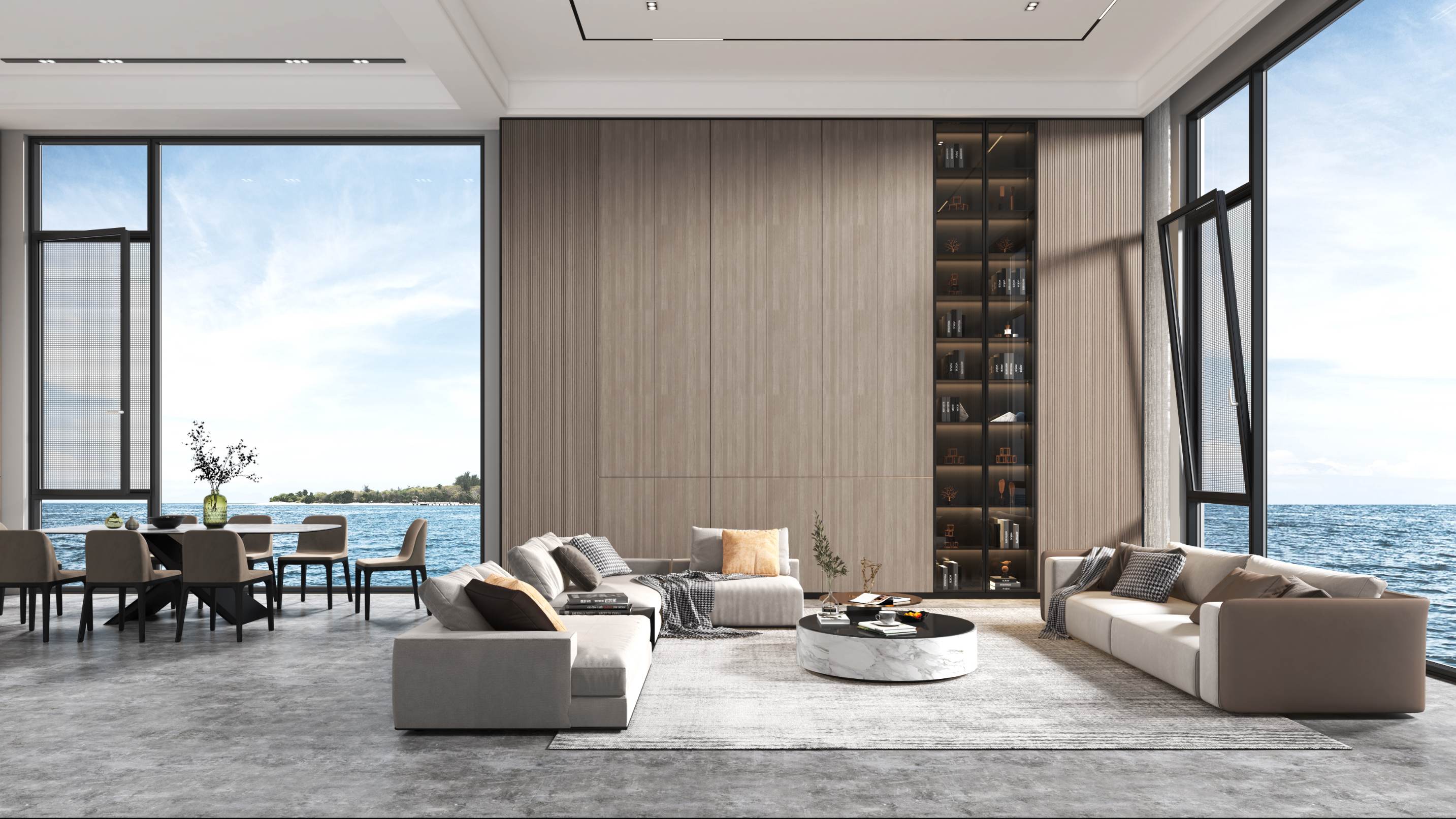

• Top-Hung Mode: The sash tilts outward from the bottom, allowing continuous ventilation even in rainy weather, while enhancing safety.
• Combined Casement + Top-Hung: Offers both modes in one design. You can switch between wide ventilation and secure tilt ventilation as needed.

This all-in-one solution combines fresh air, safety, and convenience—perfect for any modern living space.

2.Appearance Design
Adopts a flush design between frame and sash for both interior and exterior surfaces. The ultra-slim frame and sash outline a modern minimalist aesthetic, emphasizing clean geometry and balance. The exterior and interior use a layered contour concept, featuring a 7mm three-dimensional double-recessed line, adding depth and refinement to the overall visual effect.

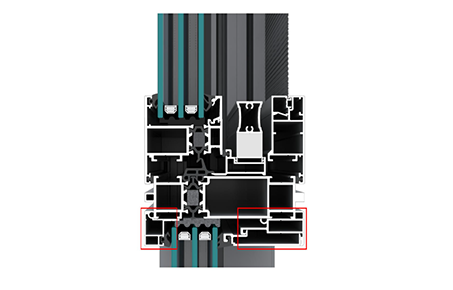

3.Sealing Design:

Features a classic equal-pressure chamber with triple sealing structure, ensuring excellent air- and water-tightness. Optional acoustic insulation cotton is available to meet individual soundproofing needs. The system is equipped with EPDM co-extruded soft–hard composite foamed sealing gaskets with high resilience.

4.Drainage System:
Designed with a hidden drainage structure, keeping the façade clean and elegant without exposed plastic covers. The recessed structure promotes quick water drainage and prevents backflow of rainwater.

   Product details

01 | Innovative Design

• Frame-sash-screen flush design
• Overlapping flush mesh & sash interface
• “Three-flat” aesthetic system
• Modern and minimalistic appearance
• Stands out in modern architecture with elegance and simplicity.

The fixed-glass section uses a reinforced full sub-frame with independent assembly, making the structure more solid and secure, and further improving sealing, waterproofing, and wind resistance performance.



02 | Precision Craftsmanship

• Full-frame injection molding process
• Dual-component corner adhesive
• 1.8mm thick aluminum profiles
• Enhanced frame rigidity and anti-deformation performance
• Durability starts with structure.

Reinforced full sub-frame,effectively enhancing the overall stability of the window.

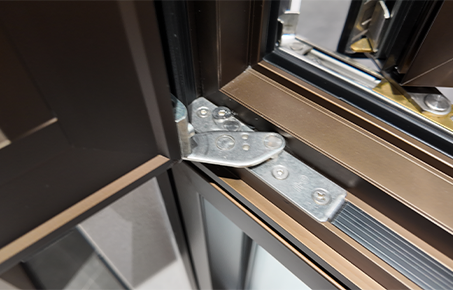

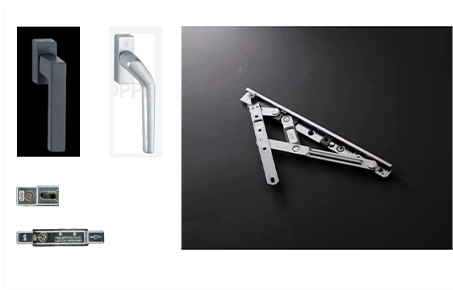

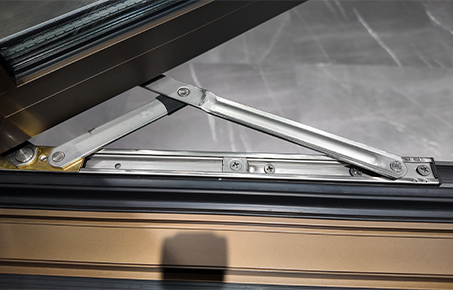

03 | Premium Hardware

Standard configuration includes GU (Gretsch-Unitas) hardware system throughout the entire series. Optional SIEGENIA German handles are available.
All GU hardware components have outstanding anti-corrosion performance — passing 576-hour salt spray testing, with world-class surface treatment technology that ensures longevity and smooth operation.



04 | Color treatment

The surface adopts AkzoNobel powder coating, ensuring true, saturated, and long-lasting color stability.

Through ceramic electrodeposition technology, the surface receives an anti-glare treatment that produces a soft, elegant gloss without light pollution, and a fine, skin-touch texture.

Powder of Tiger brand presents comfortable pastel clean feelings.

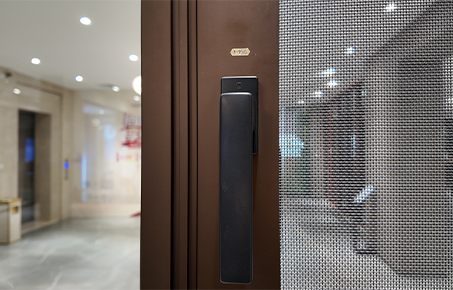

05 l Mesh

0.13 mm Ultra-Fine Mesh – Designed for high transparency and superior visibility while keeping out even the smallest insects such as mosquitoes and midges. Ideal for homes requiring excellent ventilation and unobstructed views.

0.15 mm Fine Mesh – A perfect balance between clarity and durability. Provides effective insect protection without compromising natural airflow, making it suitable for most residential applications.

0.40 mm Reinforced Mesh – Features a thicker wire diameter for greater strength and tear resistance. Recommended for high-traffic areas, sliding doors, or households with pets.

0.80 mm Heavy-Duty Mesh – Engineered for maximum durability, impact resistance, and security. Ideal for villas, ground-floor windows, or coastal and windy regions where enhanced protection is essential.

06 l Glass structures

Double-Glazed Units (DGUs) – Configured with argon gas filling, these units deliver outstanding thermal insulation and energy efficiency, minimizing heat transfer and reducing energy consumption.

Triple-Glazed Units – Provide enhanced insulation performance for extreme climate conditions, significantly reducing heat loss and improving indoor comfort throughout the year.

Low-E Glass – Coated with a special low-emissivity layer that reflects infrared heat while allowing visible light to pass through. It offers excellent UV protection, boosts energy efficiency, and helps maintain a cooler interior in hot climates.

Optional Upgrades – Available with high-performance Low-E coatings, ideal for villas, premium residences, or properties in regions with intense sunlight exposure.

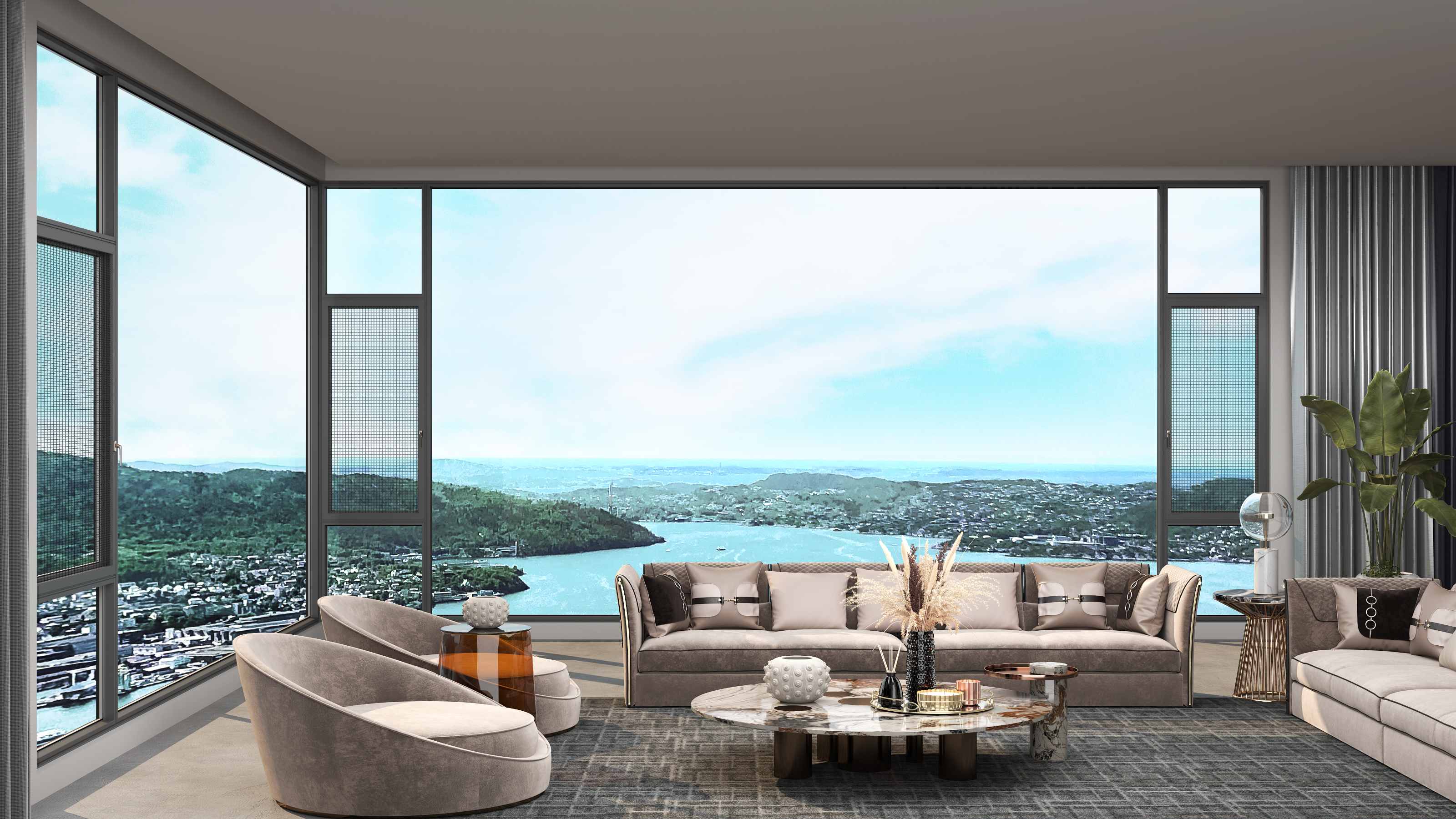

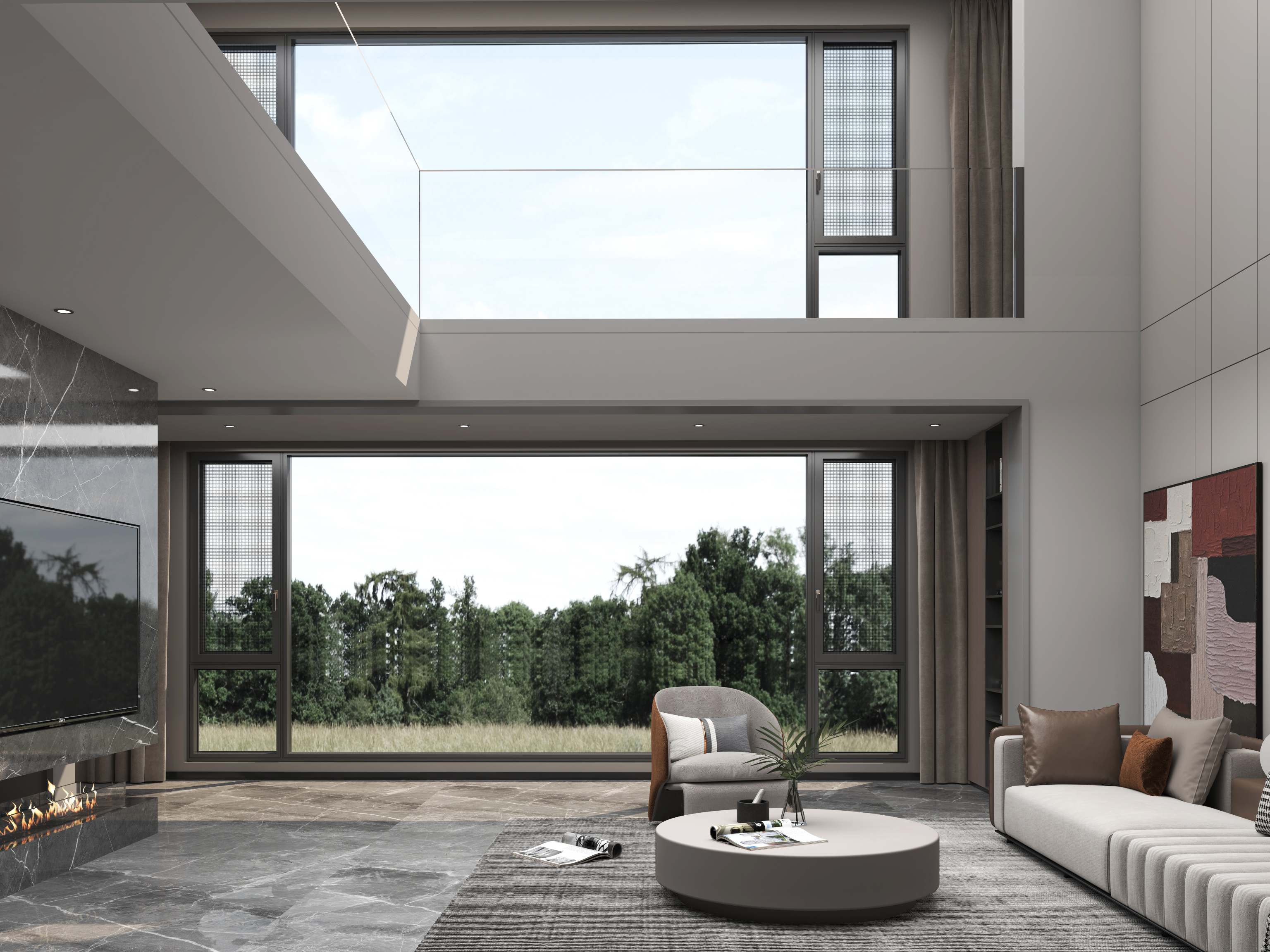

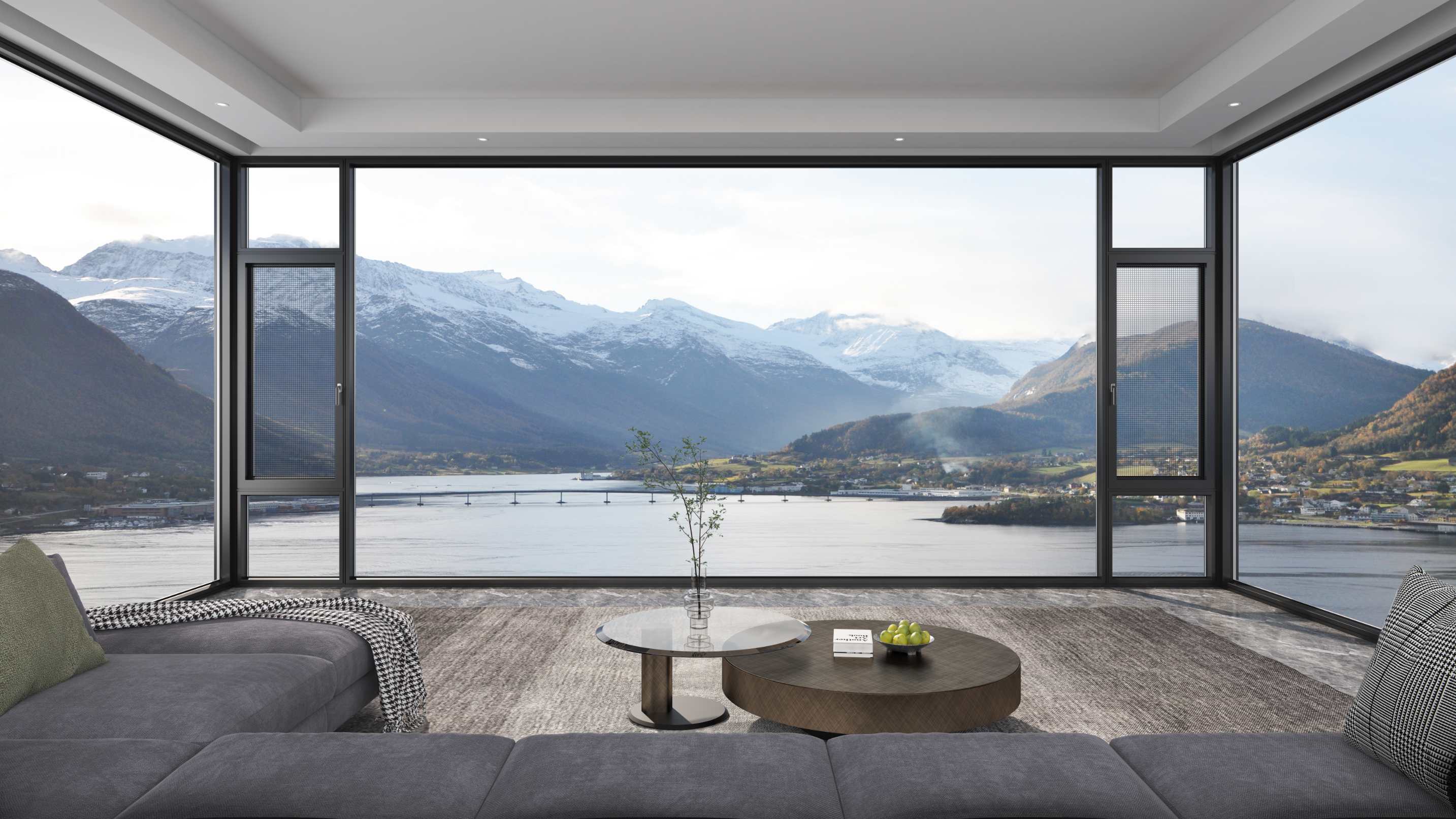

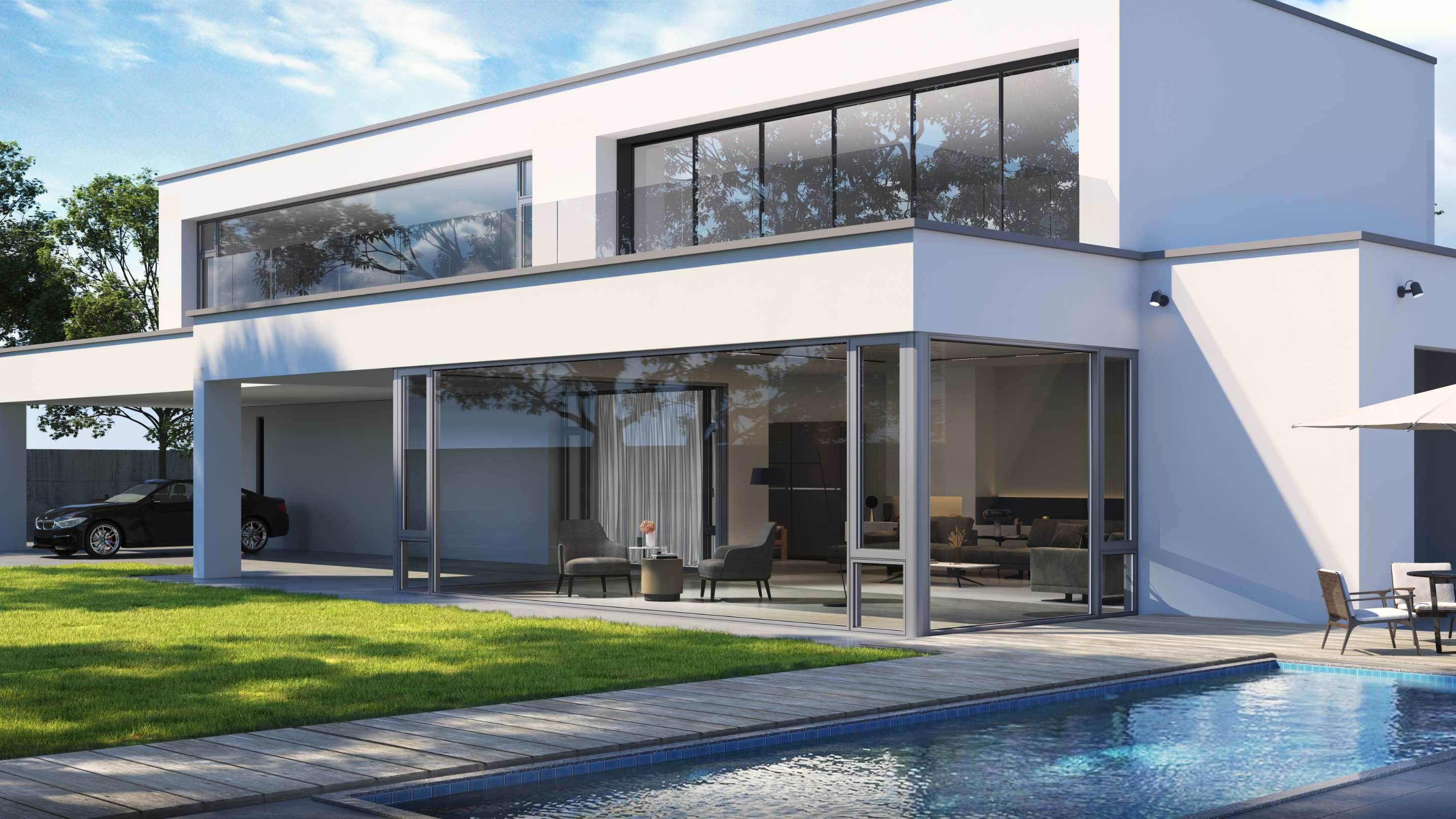

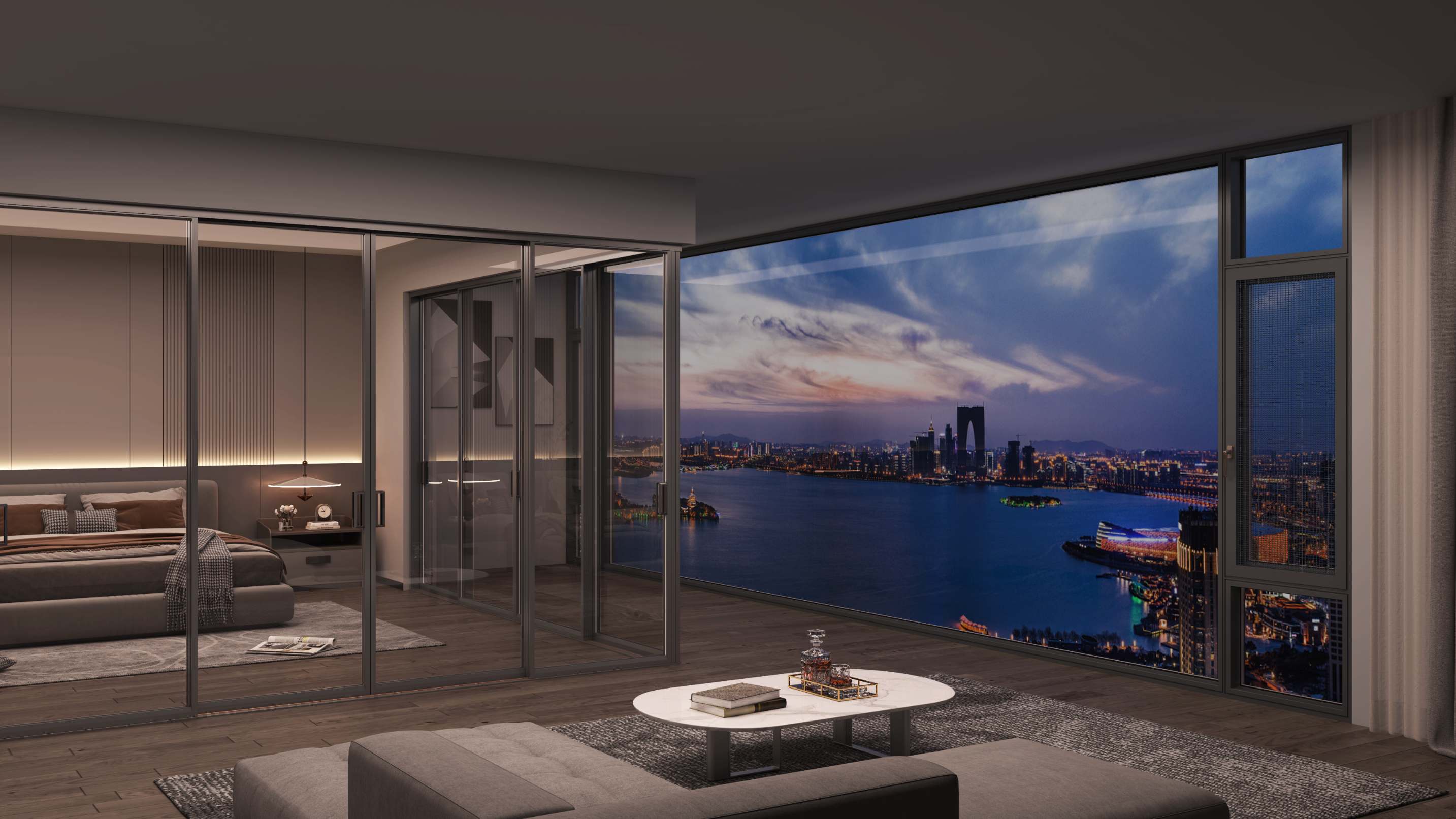

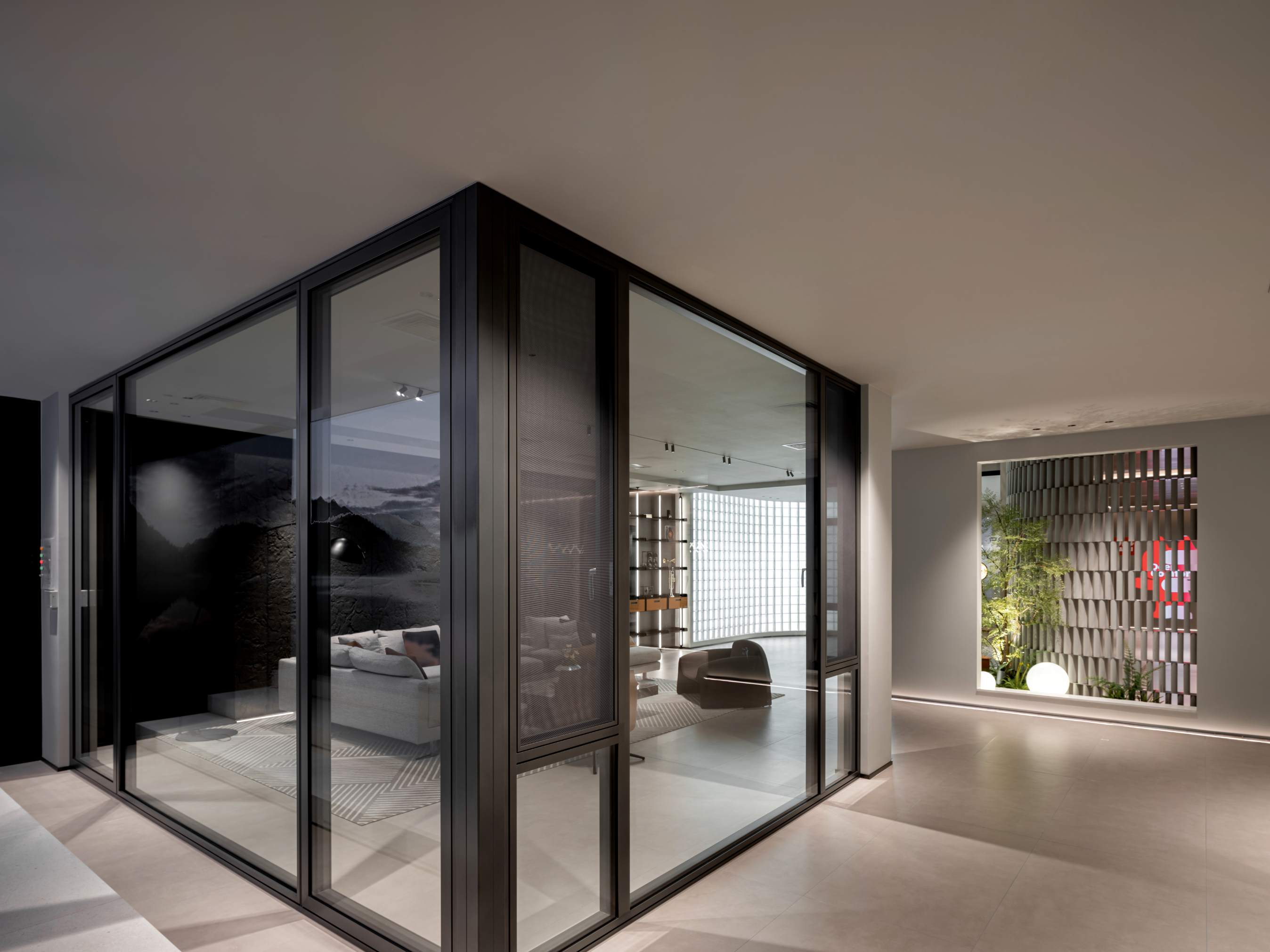

    Application Scenarios
