AQH Outward Casement Window

   Product Features

1. Thermal break system

Featuring thermal-break system technology for energy saving, sound insulation, noise reduction, dust and water resistance.

2. Heat proof

Insulation design system and glazings with Low-e glass, meeting different energy rating standards.

3. Sound proof

 Insulation glass system reducing noise from 36db to 43db

4. stable structure

Premium primary aluminum 6063-T5, professional architectural system design, strong and safe structure

5. Aesthetics

Hidden drainage system without external wind caps, delivering a clean exterior look while ensuring vertical drainage that prevents rainwater backflow under high wind conditions.

6. Intelligent

 With smart window control system, intelligentize your home.

    Product Brief

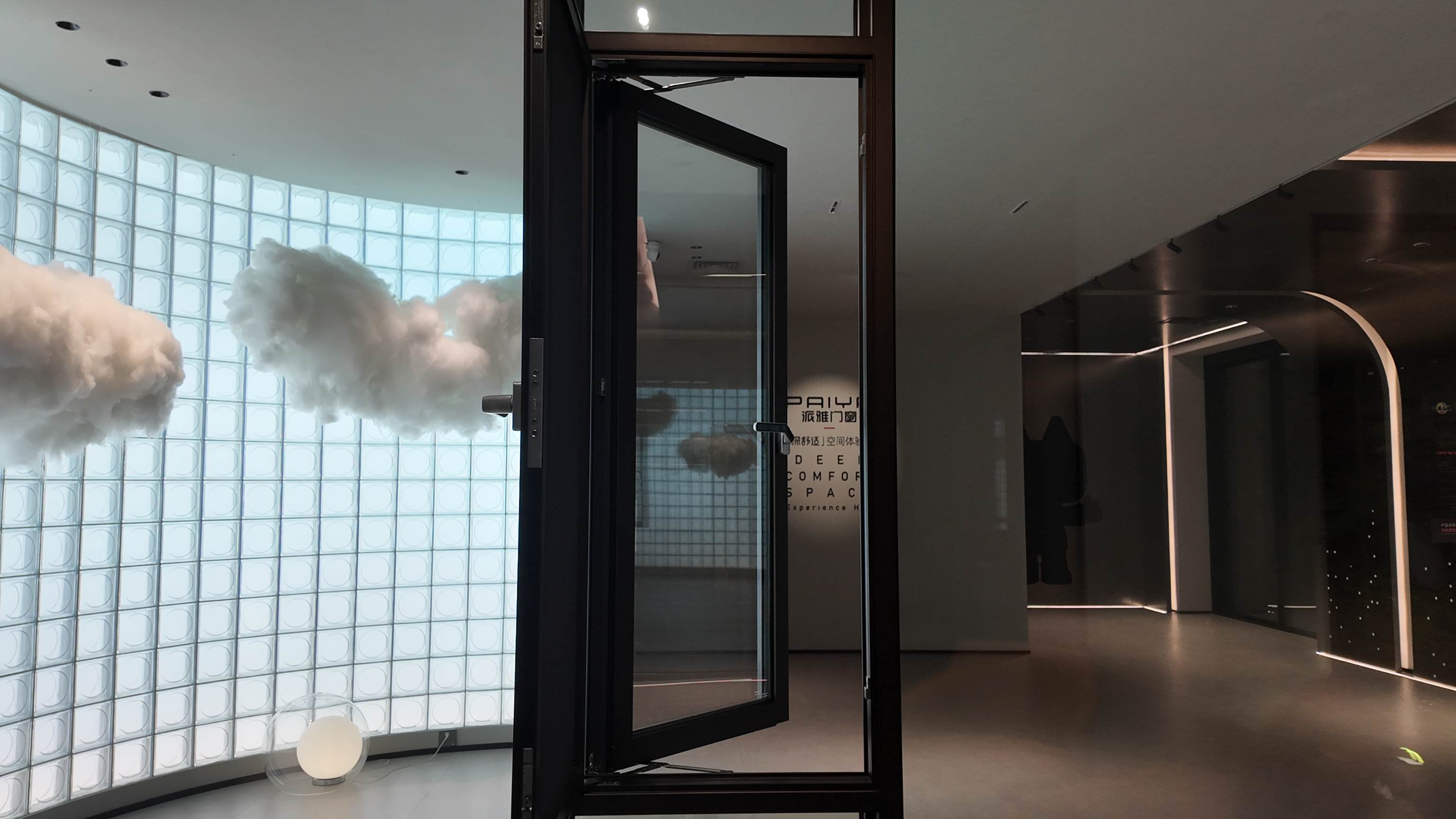

1. Dual-Function Opening

Our tilt-and-turn window offers two convenient opening modes:

• Turn Mode: Opens inward like a traditional casement window, making it easy to ventilate and clean.
• Tilt Mode: The top of the sash tilts inward to create a secure ventilation gap. This allows fresh air to flow in while keeping out rain and ensuring safety.

This versatile design combines practicality, comfort, and peace of mind—perfect for modern homes.

2.Appearance Design:

Innovative flush frame-sash design with layered sub-frames and 7mm dual recessed lines creates a stylish flat look while enhancing sealing performance.

3.Sealing Design:

Innovative triple-seal structure with EPDM composite strips and a flexible sealing system further enhances watertightness and airtightness.

4.Drainage System:
Designed with a hidden drainage structure, keeping the façade clean and elegant without exposed plastic covers. The recessed structure promotes quick water drainage and prevents backflow of rainwater.

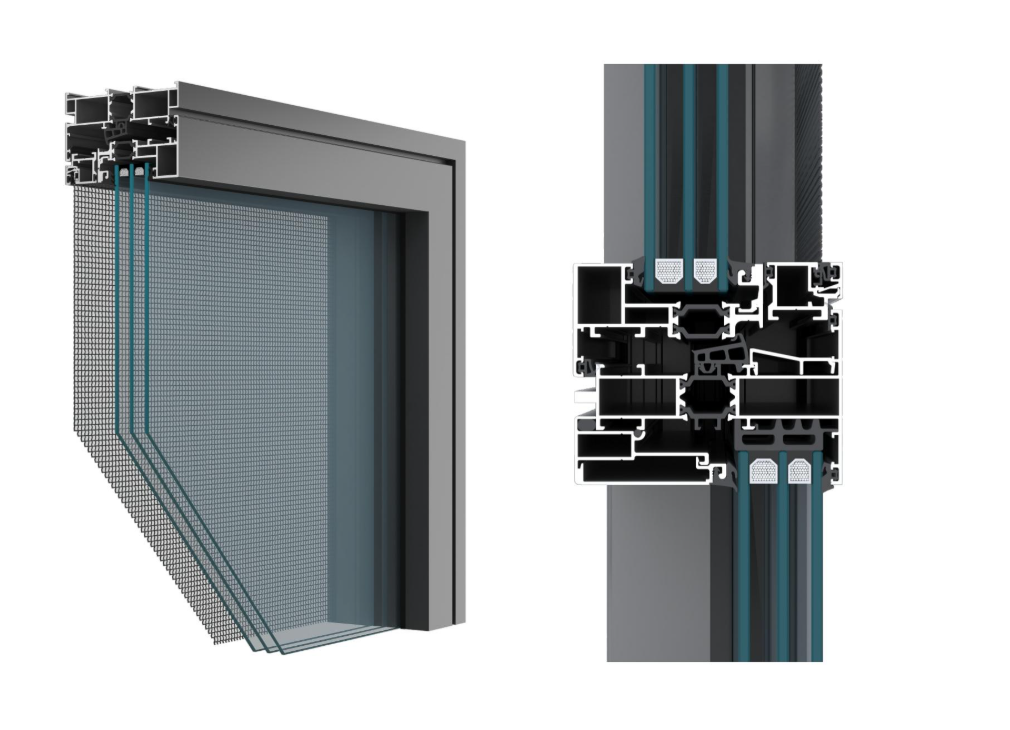

5.Equipped with a standard 24mm thermal break and triple glazing structure, the whole window meets the high insulation and thermal performance requirements for cold regions.

   Product details

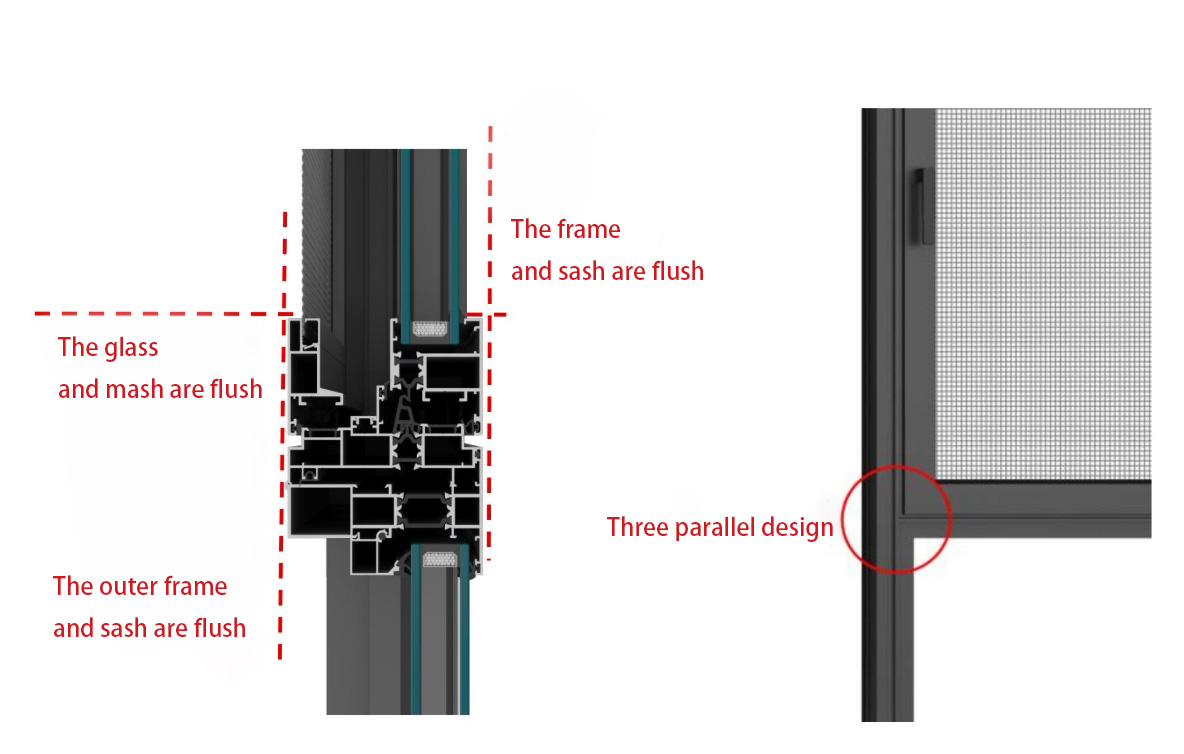

01 | Innovative Design

• Frame-sash-screen flush design.
• Overlapping flush mesh & sash interface.
• “Three-flat” aesthetic system.
• Modern and minimalistic appearance.
• Stands out in modern architecture with elegance and simplicity.

 02 | Precision Craftsmanship

• Durability Begins with Structure:Crafted through a full-frame injection molding process with dual-component corner adhesive, the frame achieves exceptional integrity and precision.
• Using 1.8mm-thick aluminum profiles, it delivers enhanced rigidity and outstanding resistance to deformation—ensuring lasting performance and stability.

03 | Premium Hardware

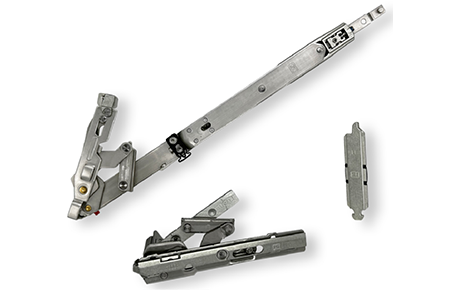

Equipped with a patented, security-oriented hardware system, this product adopts the German Siegenia tilt-and-turn mechanism featuring precision-engineered hinges capable of supporting up to 60 kg. The structure is robust yet refined, combining strength with minimalist elegance.

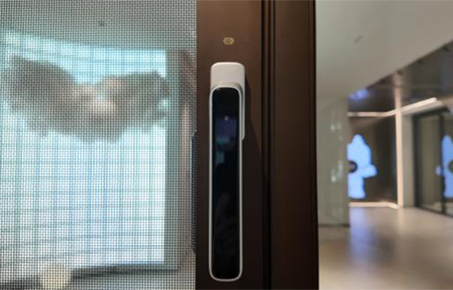

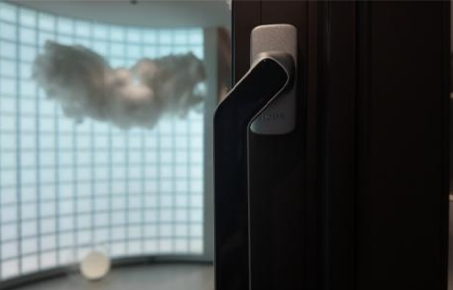

It is fitted with Siegenia’s base-free handle, innovative multi-point locking system, and anti-theft strike plates, providing superior resistance to forced entry and prying.Rigorously tested for durability and static load performance, the system retains its original gloss and finish over time without fading.

Designed with golden-ratio proportions and smooth, flowing lines, it conveys a timeless sense of luxury and architectural sophistication.

Equipped with a complete set of German GU window control hardware—including hinges, transmission mechanisms, locking points, and strike plates—each component undergoes rigorous durability and static load testing to ensure long-lasting reliability and exceptional anti-prying performance.

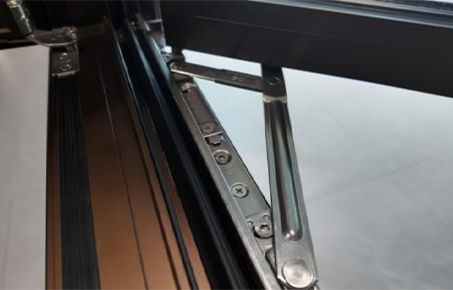

The system incorporates SIEGENIA side-sliding five-bar hinges, enabling a maximum opening angle of 90°. This design allows multi-directional airflow for enhanced indoor ventilation while maintaining structural stability.

The wide 90° opening also provides easy access for cleaning the exterior glass surface, combining practicality with refined engineering.



04l Color treatment

The surface adopts AkzoNobel powder coating, ensuring true, saturated, and long-lasting color stability.

Through ceramic electrodeposition technology, the surface receives an anti-glare treatment that produces a soft, elegant gloss without light pollution, and a fine, skin-touch texture.

Powder of Tiger brand presents comfortable pastel clean feelings.

05 l Mesh

0.13 mm Ultra-Fine Mesh – Designed for high transparency and superior visibility while keeping out even the smallest insects such as mosquitoes and midges. Ideal for homes requiring excellent ventilation and unobstructed views.

0.15 mm Fine Mesh – A perfect balance between clarity and durability. Provides effective insect protection without compromising natural airflow, making it suitable for most residential applications.

0.40 mm Reinforced Mesh – Features a thicker wire diameter for greater strength and tear resistance. Recommended for high-traffic areas, sliding doors, or households with pets.

0.80 mm Heavy-Duty Mesh – Engineered for maximum durability, impact resistance, and security. Ideal for villas, ground-floor windows, or coastal and windy regions where enhanced protection is essential.

06 l Glass structures

Double-Glazed Units (DGUs) – Configured with argon gas filling, these units deliver outstanding thermal insulation and energy efficiency, minimizing heat transfer and reducing energy consumption.

Triple-Glazed Units – Provide enhanced insulation performance for extreme climate conditions, significantly reducing heat loss and improving indoor comfort throughout the year.

Low-E Glass – Coated with a special low-emissivity layer that reflects infrared heat while allowing visible light to pass through. It offers excellent UV protection, boosts energy efficiency, and helps maintain a cooler interior in hot climates.

Optional Upgrades – Available with high-performance Low-E coatings, ideal for villas, premium residences, or properties in regions with intense sunlight exposure.

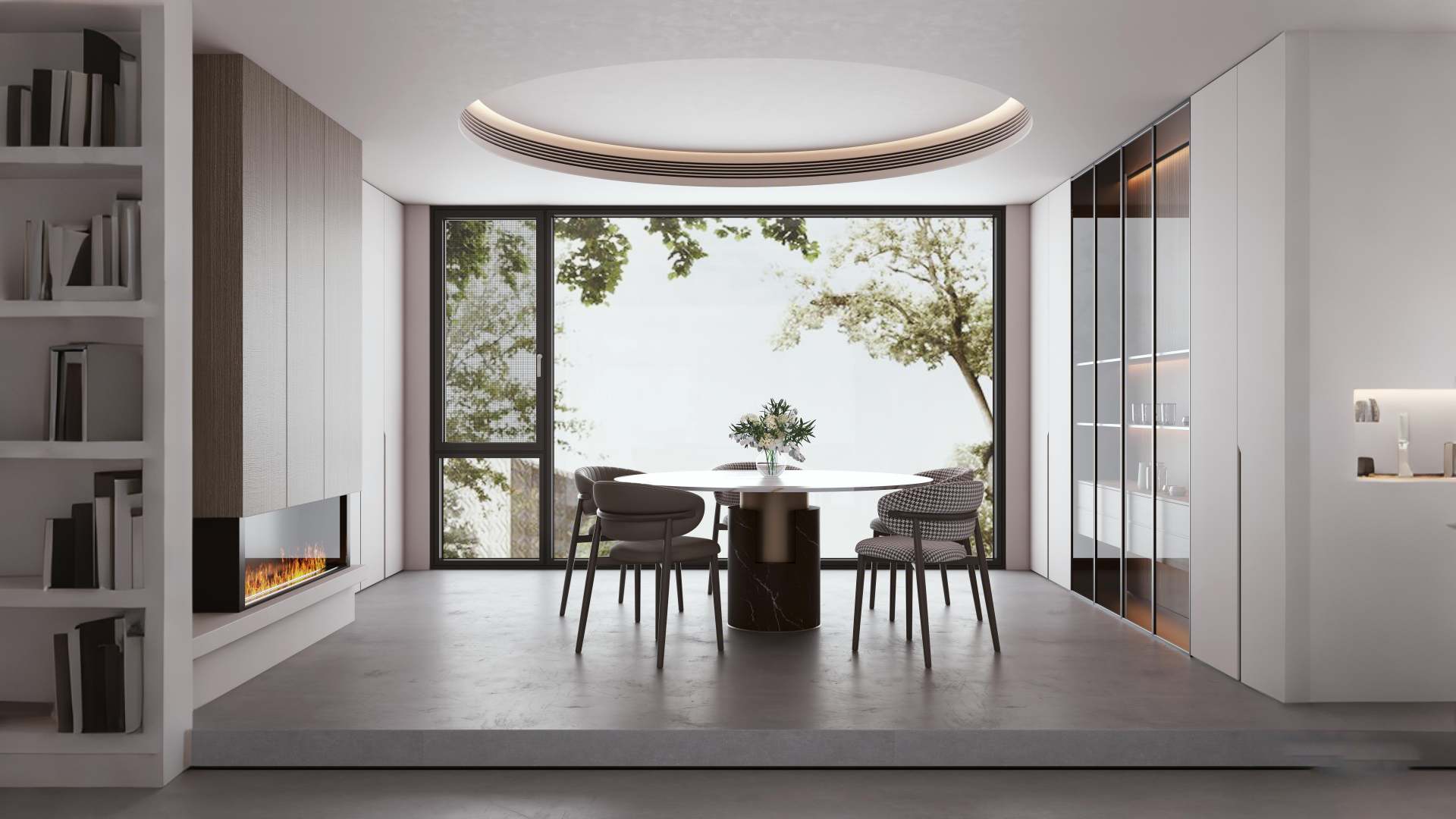

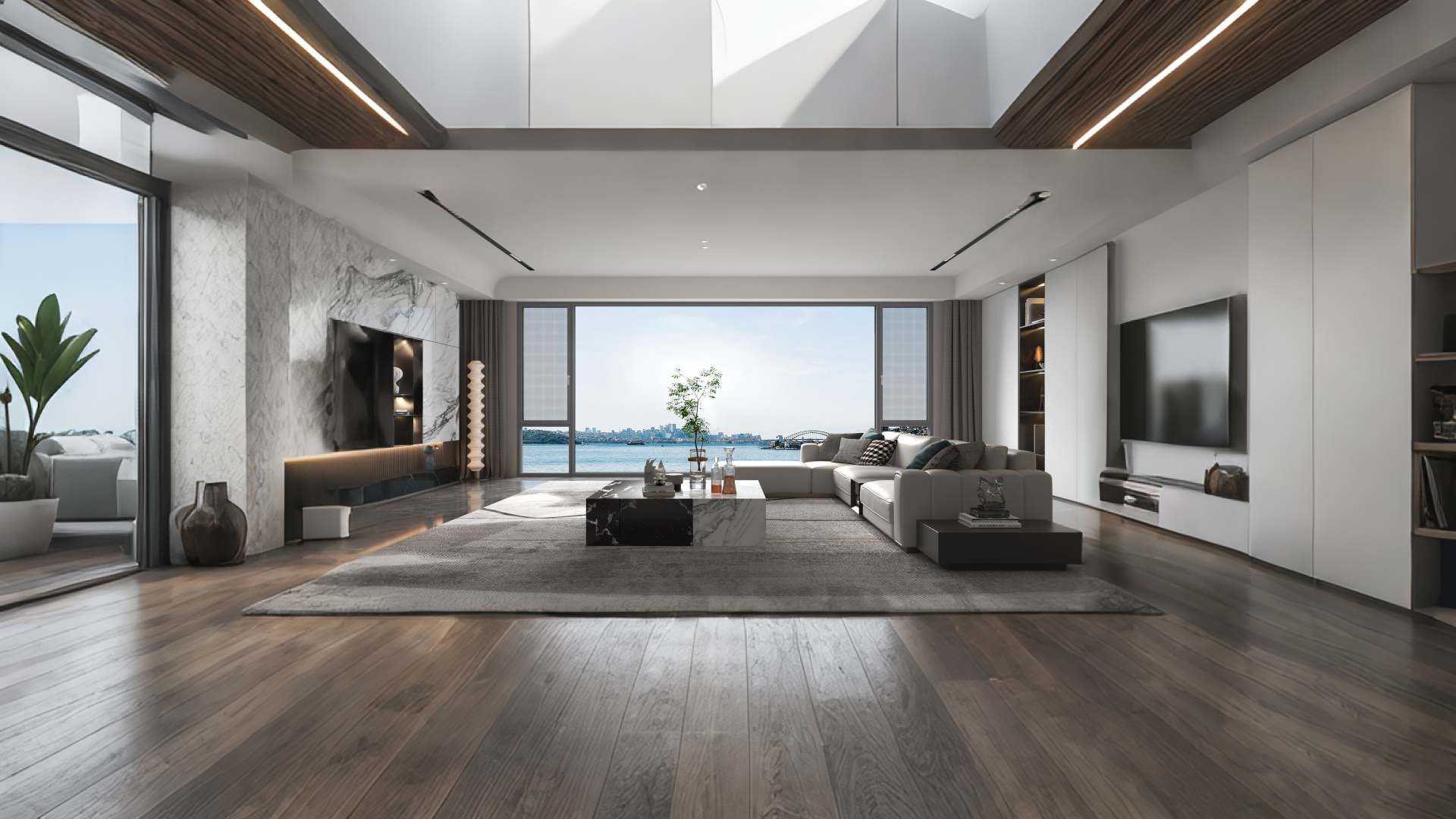

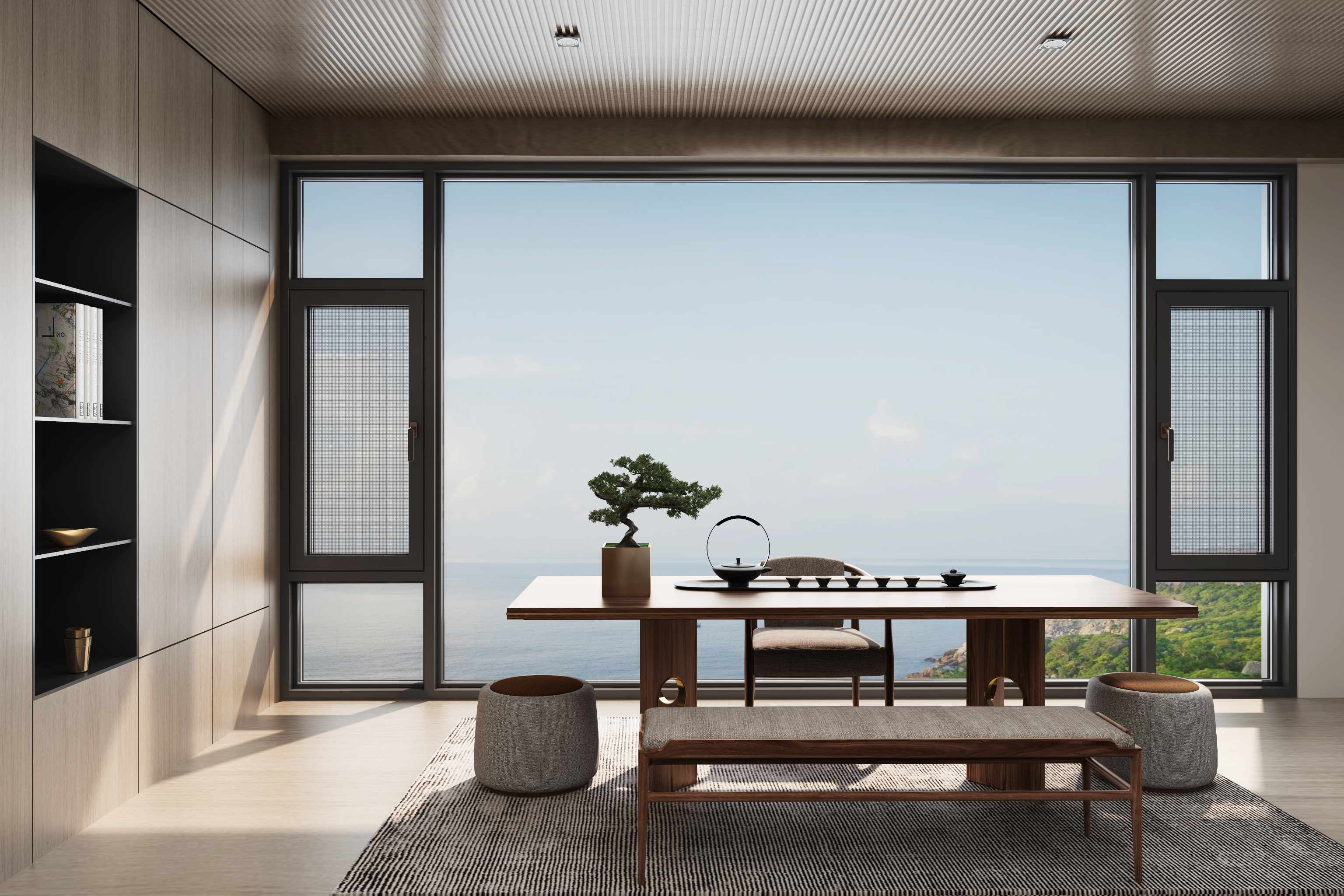

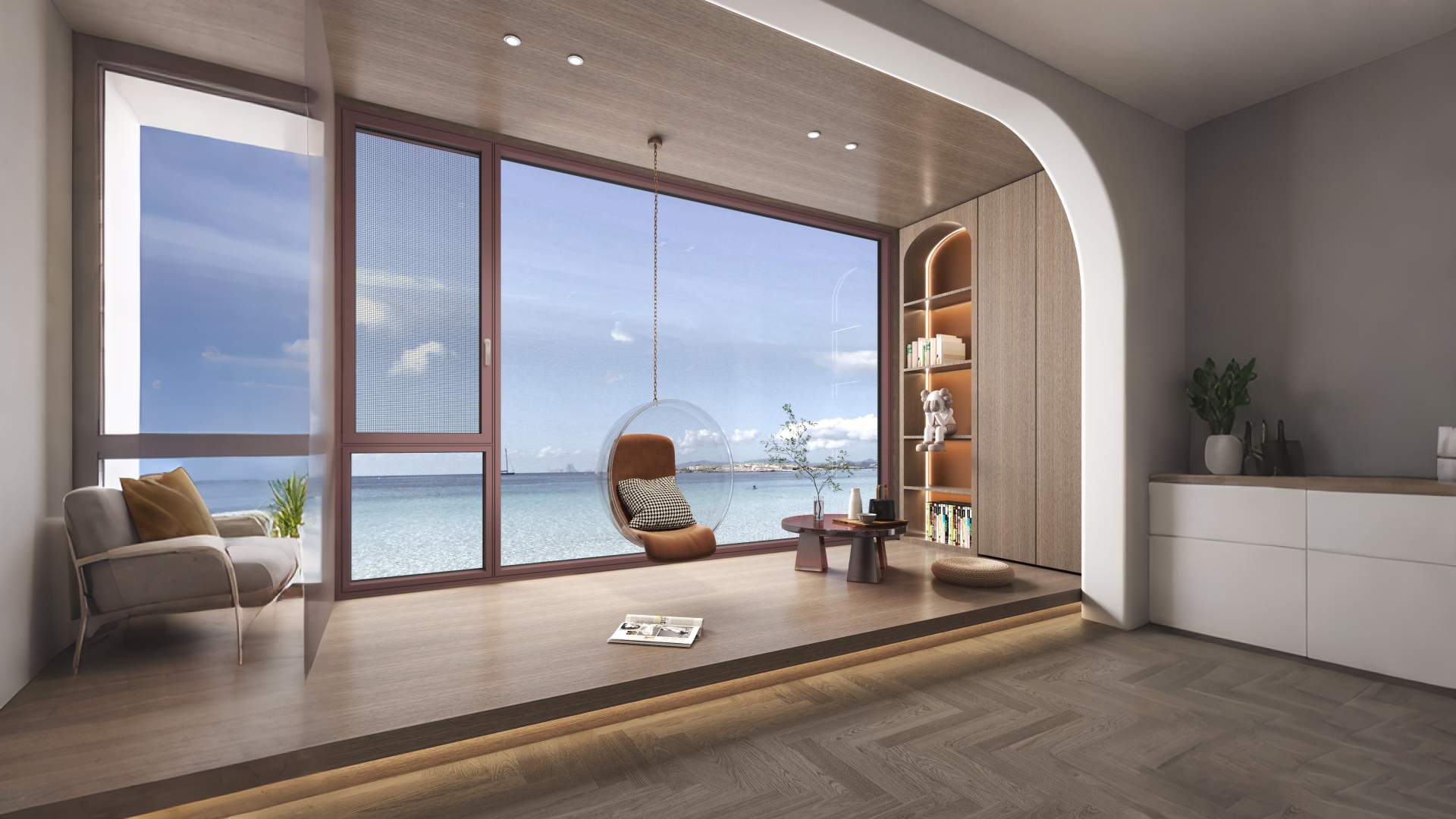

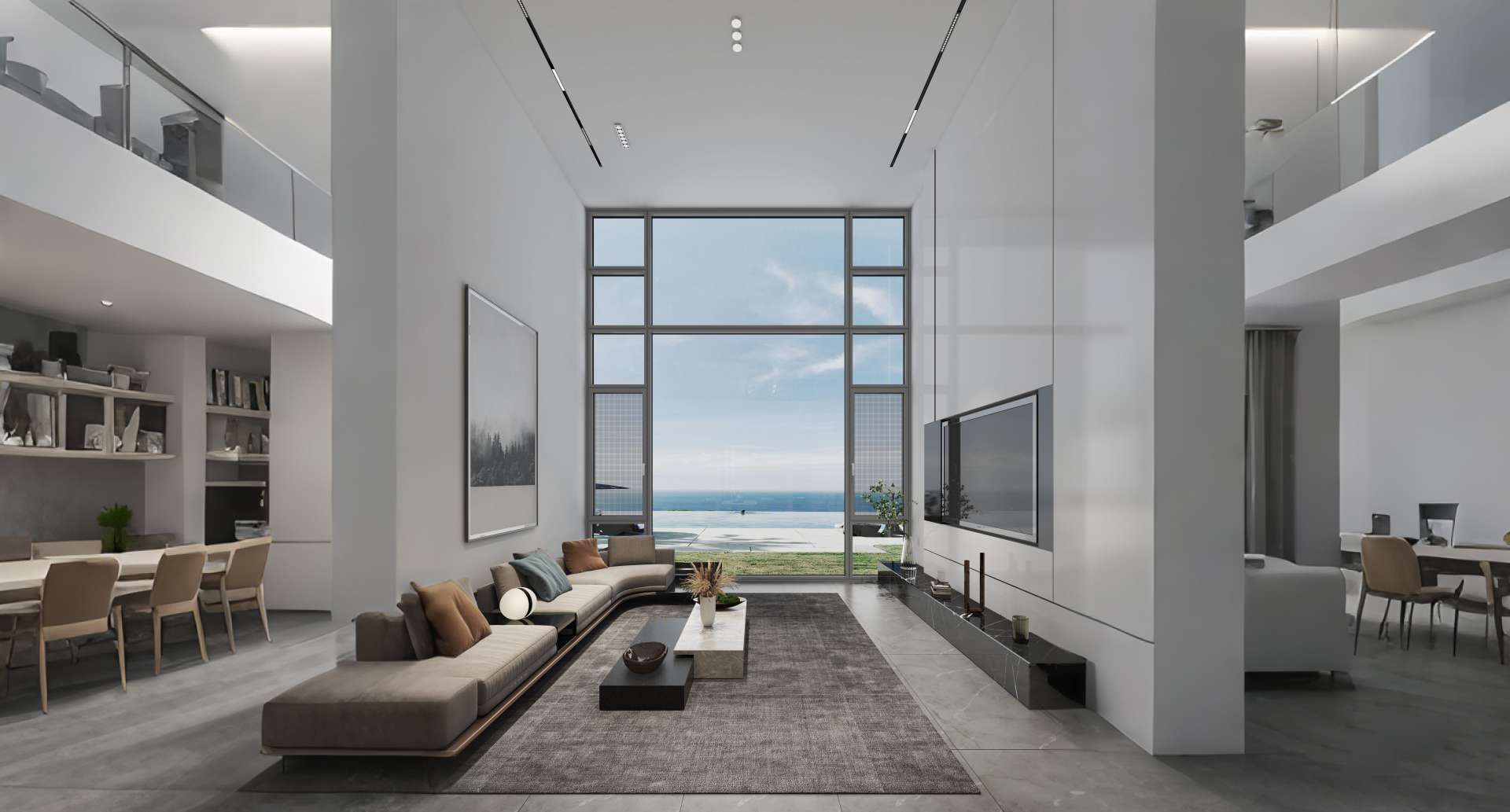

    Application Scenarios
