Featuring thermal-break system technology for energy saving, sound insulation, noise reduction, dust and water resistance.
|
Glass Configuration |
Tempered glass: 5mm + 20A + 5mm Optional glass: 6mm to 15mm thickness Triple glazing Lamination glass Low-e glass |
|
Hardware |

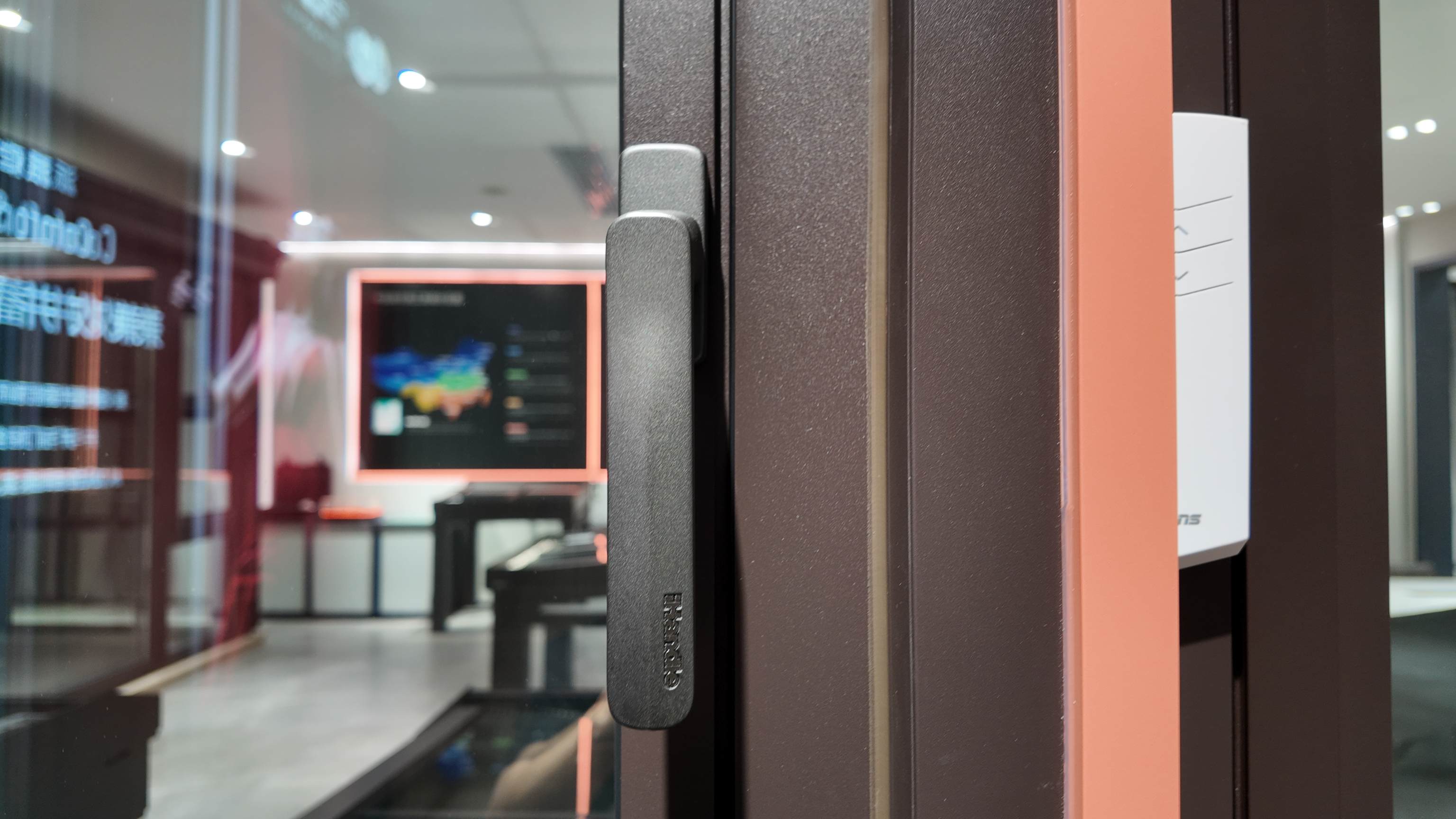

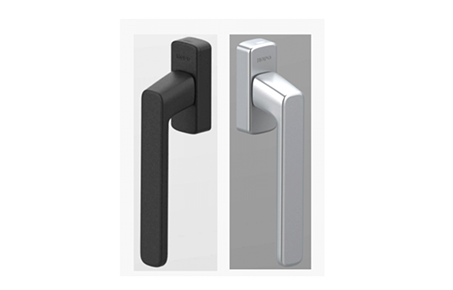

HOPO handle、HOPO window control system |
|
Drainage System |
Stepped Hidden Secondary Drainage System |
|
Aluminum Profile Thickness |
1.6-1.8mm |
|
Depth of frame |
65mm |
Product Features
1. Thermal break system
Featuring thermal-break system technology for energy saving, sound insulation, noise reduction, dust and water resistance.
2. Heat proof
Insulation design system and glazings with Low-e glass, meeting different energy rating standards.
3. Sound proof
Insulation glass system reducing noise from 36db to 43db
4. stable structure
Premium primary aluminum 6063-T5, professional architectural system design, strong and safe structure
5. Aesthetics
Hidden drainage system without external wind caps, delivering a clean exterior look while ensuring vertical drainage that prevents rainwater backflow under high wind conditions.
6. Intelligent
With smart window control system, intelligentize your home.
Product Brief

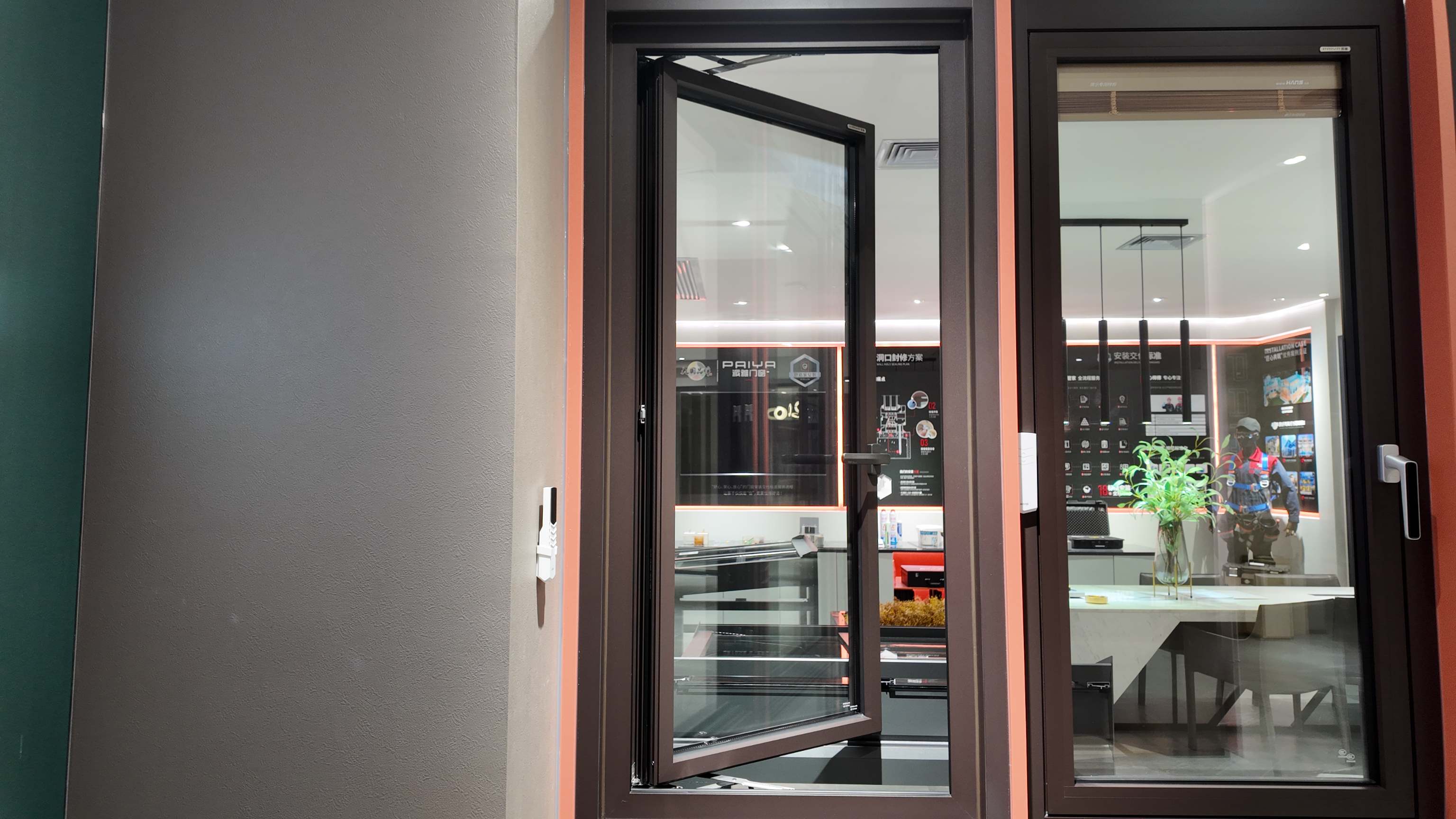

1. Our outward-opening window offers two flexible opening options:
2.Appearance Design:
Smooth lines with a golden-ratio proportion deliver a minimalist aesthetic and excellent cost-performance balance.
3.Single-unit window structure — ideal for high-rise buildings, sunrooms, or as a complementary installation.
4.Features a classic three-layer sealing design. Equipped with high-quality EPDM integrated soft–hard composite foamed sealing strips from a listed-brand supplier. The high-speed rail-grade flexible sealing system ensures tight compression between sash and frame. The sash and frame remain flush on the interior side, effectively enhancing airtight and watertight performance.
5.Drainage System:
Designed with a hidden drainage structure, keeping the façade clean and elegant without exposed plastic covers. The recessed structure promotes quick water drainage and prevents backflow of rainwater.
6.Thermal Insulation:

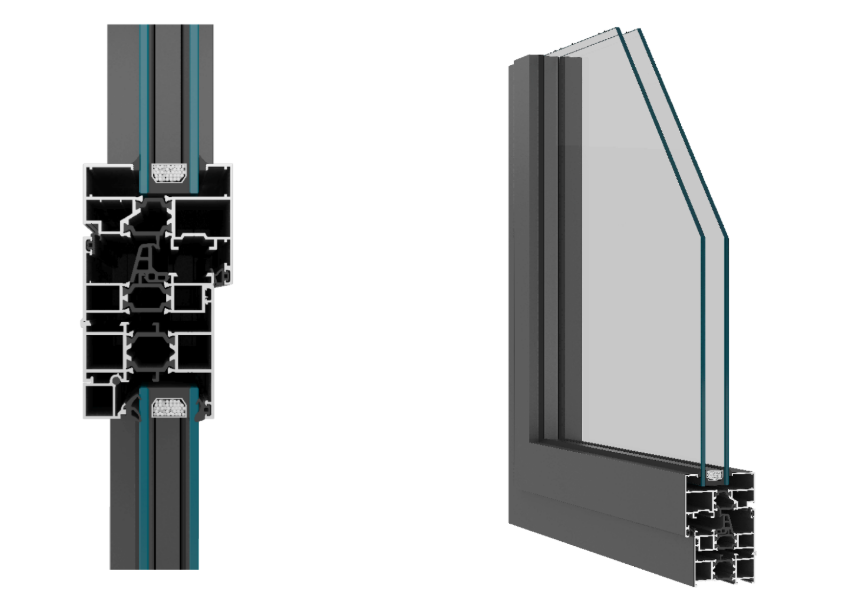

Utilizes a 24mm thermal break system, effectively reducing energy exchange between indoor and outdoor environments, offering superior thermal insulation and energy-saving performance.
7.Installation Design:
Adopts an indoor glazing system, allowing glass installation and maintenance from inside the room — eliminating high-altitude operations and safety risks, while reducing installation costs.
Product details

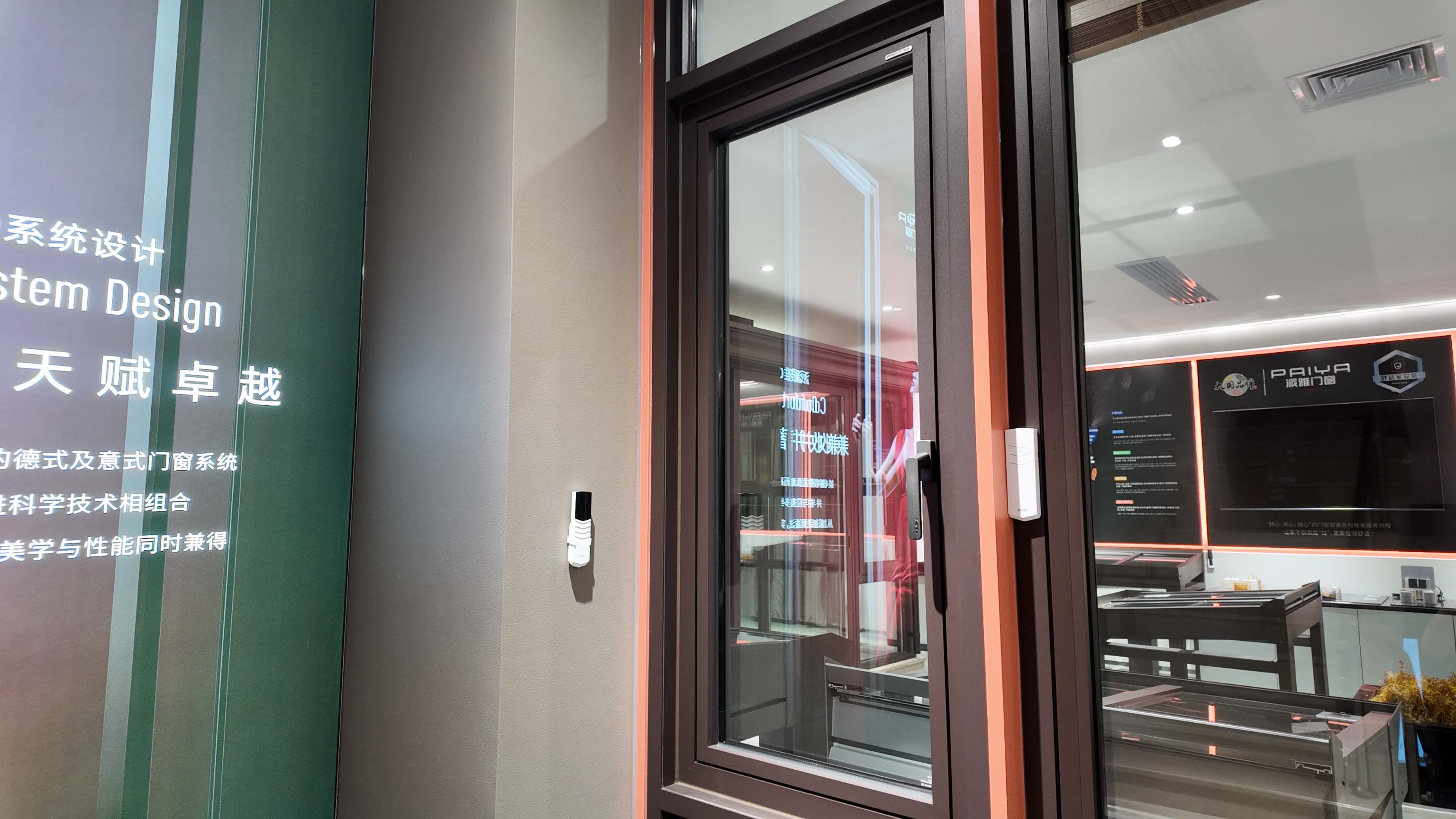

01 | Innovative Design
Featuring smooth, streamlined profiles, the window is designed with golden proportions to enhance the overall visual appeal.
The sash and frame are aligned flush on the interior side, effectively improving the airtightness and sealing performance.
02 | Precision Craftsmanship
03 | Premium Hardware

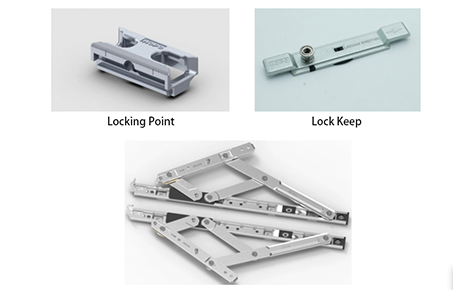

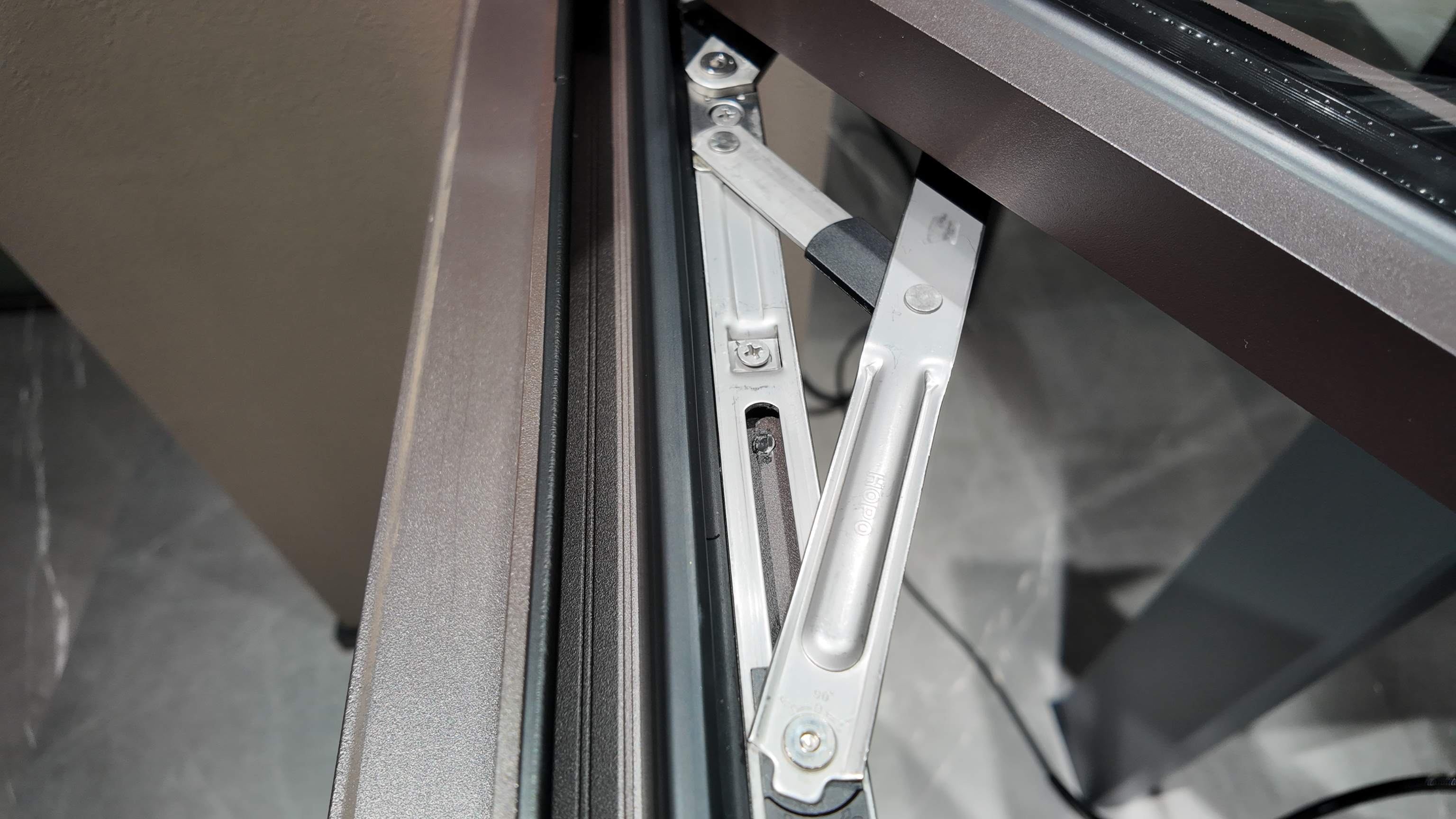

Featuring the HOPO hardware control system, the window adopts anti-theft locking points and keepers for enhanced security.
Rigorously tested for durability and static load performance, the system ensures lasting reliability.With a precision-engineered locking configuration, it achieves a top-tier sealing system for superior airtightness and protection.
04| Color treatment
The surface adopts AkzoNobel powder coating, ensuring true, saturated, and long-lasting color stability.
Through ceramic electrodeposition technology, the surface receives an anti-glare treatment that produces a soft, elegant gloss without light pollution, and a fine, skin-touch texture.
Powder of Tiger brand presents comfortable pastel clean feelings.
05|Glass structures
Double-Glazed Units (DGUs) – Configured with argon gas filling, these units deliver outstanding thermal insulation and energy efficiency, minimizing heat transfer and reducing energy consumption.
Triple-Glazed Units – Provide enhanced insulation performance for extreme climate conditions, significantly reducing heat loss and improving indoor comfort throughout the year.
Low-E Glass – Coated with a special low-emissivity layer that reflects infrared heat while allowing visible light to pass through. It offers excellent UV protection, boosts energy efficiency, and helps maintain a cooler interior in hot climates.
Optional Upgrades – Available with high-performance Low-E coatings, ideal for villas, premium residences, or properties in regions with intense sunlight exposure.

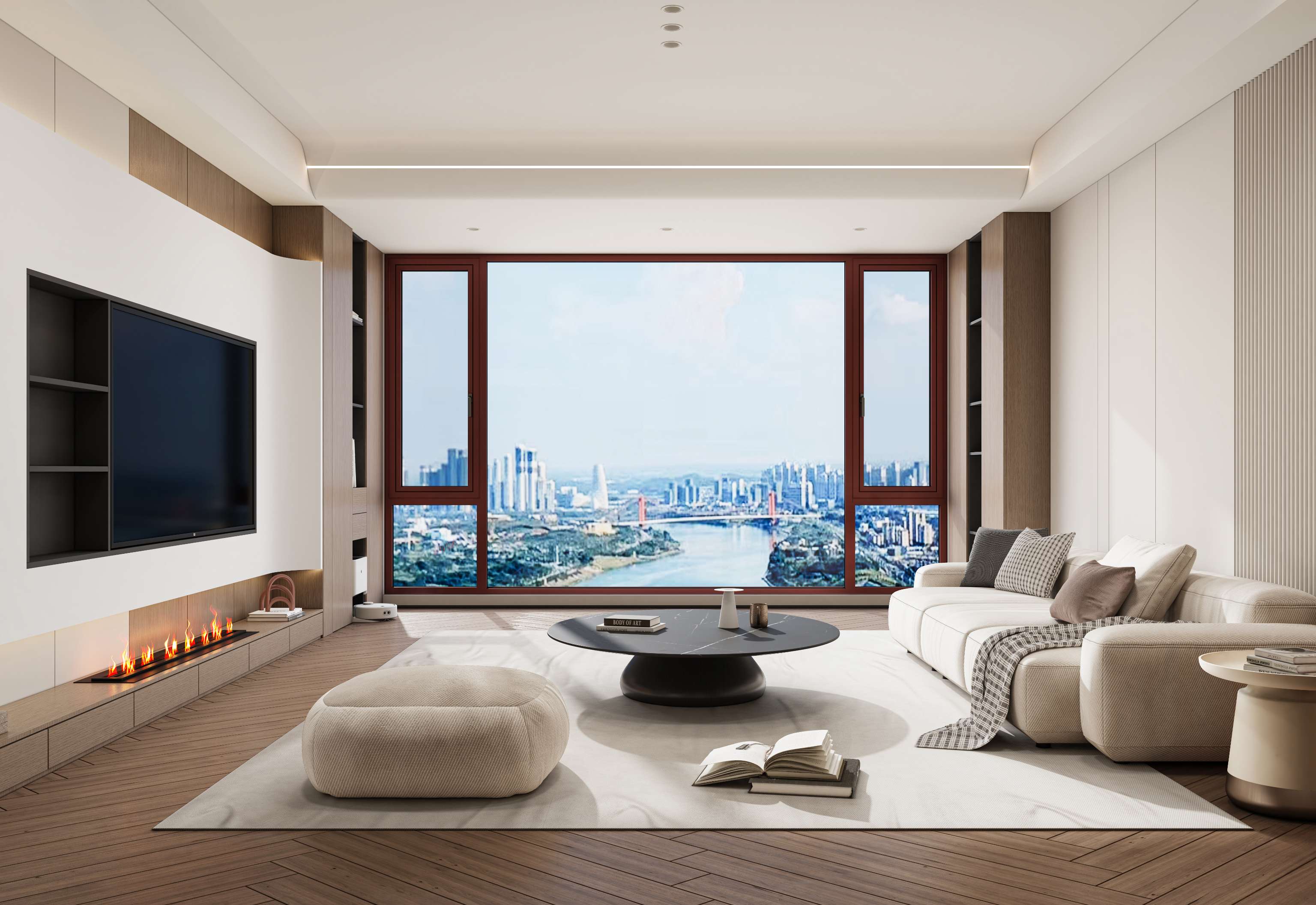

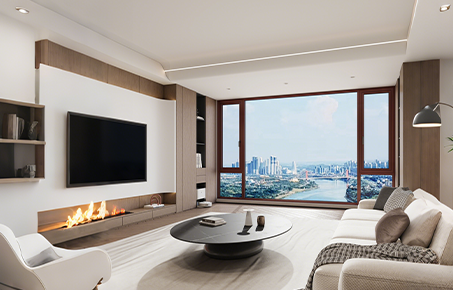

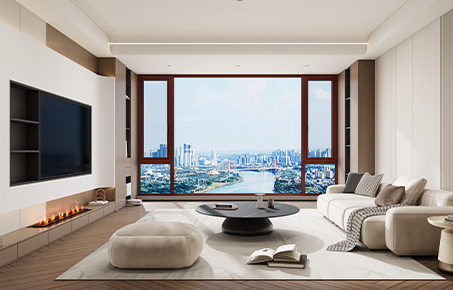

Application Scenarios
Package & Shipping
Yes, our products are designed and manufactured to meet international performance standards, including U-value, wind resistance, air tightness, and water tightness, in line with CE (EN standards) and ISO 9001 requirements.If your market requires specific certificates (such as UKCA, AS2047, or NAFS), we can also prepare the documents or testing accordingly.
We provide full project support from design to after-sales service, including:
10 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.If any problem occurs, please contact us with photos or a short video. Our after-sales team will offer technical guidance, spare parts replacement, or local repair support depending on the situation.
25-35 days after deposit and drawing confirmed
The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you.
(1) Shop drawing / window schedule to show the window dimensions, quantity and type;
(2) Frame Color ；Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others,with Argon or without).
Yes,Our factory covers an area of 300000㎡and has a history of more than thirty years.
